EGG CRACKERS
CAPACITY: 5000 eggs/hour
REPLACES: 8 people
COMPATIBILITY:
POWER SUPPLY: 0.37 kW 230 V 1/N/PE 50/60 Hz, 0.45 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: n/d
DIMENSIONS: 650x425x425 mm [26x17x17 in.]
MINIMAL WORKSPACE: 1000×600 mm [40×24 in.]
WEIGHT: 35 kg [78 lbs]
OPERATED BY: 1 person
UDTJ-5

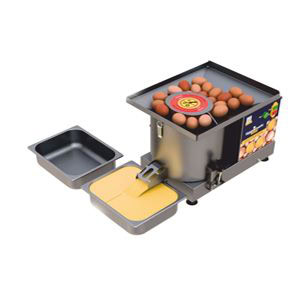

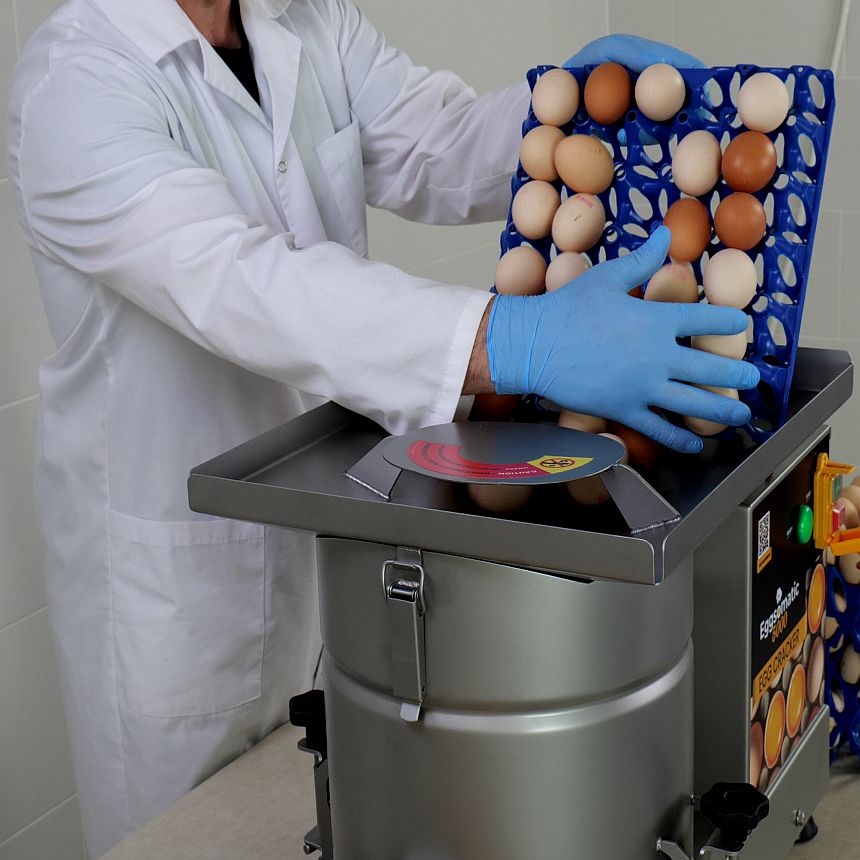

The UDTJ-5 Eggsomatic is a semi-automatic centrifugal egg cracker which produces fresh liquid egg. After filling the hopper with eggs, the machine cracks the eggs and separates the liquid egg from the eggshells using an internal filter. Shells should be removed from the filter after every 90 eggs, after which breaking can be continued.
Public Health and Quality Standards: NSF Certificate
The UDTJ-5 Eggsomatic features full NSF certification – a globally recognized, independent third-party verification. This status guarantees that the machine, its construction materials, and the internal filtration system comply strictly with rigorous public health, safety, and quality standards. For food business operators, this certified safety level ensures seamless alignment with HACCP protocols and international sanitary audits.
REPLACES: 8-16 people
COMPATIBILITY: PS-1
POWER SUPPLY: 1.1 kW 230 V 1/N/PE 50/60 Hz, 1.1 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: n/d
DIMENSIONS: 518x700x800 mm [20x28x35 in.]
MINIMAL WORKSPACE: 1500×1500 mm [59×59 in.]
WEIGHT: 60 kg [132 lbs]
OPERATED BY: 1 person
UDTJ-10
The UDTJ-10 NSF is a semi-automatic centrifugal egg cracker which produces fresh liquid egg. After filling the hopper with eggs, the machine cracks the eggs and separates the liquid egg from the eggshells using an internal filter. Shells should be removed from the filter after every 210 eggs, after which breaking can be continued.
Public Health and Quality Standards: NSF Certificate
The UDTJ-10 features full NSF certification – a globally recognized, independent third-party verification. This status guarantees that the machine, its construction materials, and the internal filtration system comply strictly with rigorous public health, safety, and quality standards. For food business operators, this certified safety level ensures seamless alignment with HACCP protocols and international sanitary audits.
REPLACES: 15-23 people
COMPATIBILITY: PS-1, MX-2/4, UX-2/4
POWER SUPPLY: 1.1 kW 400 V 3/N/PE 50/60 Hz, 1.1 kW 230 V 3/N/PE 50/60 Hz, 1.1 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: n/d
DIMENSIONS: 604x684x910 mm [24x27x36 in.]
MINIMAL WORKSPACE: 1500×1500 mm [59×59 in.]
WEIGHT: 80 kg [176 lbs]
OPERATED BY: 1 person
UDTJ-150
The UDTJ-150 is an automatic centrifugal egg cracker. After filling the machine with eggs, it cracks the eggs and transports fresh egg liquid to a placed container.
At the same time, the eggshells are crushed which greatly reduces their volume. After that, the eggshells are automatically removed from the machine. In addition, because of its unique construction, the machine retrieves 98% off egg liquid from the crushed shells, therefore it minimizes costs by reducing the amount of wasted product. As a result, the UDTJ-150 will be a great asset for small and medium bakeries, confectioneries, restaurants, donut shops and medium egg processing facilities.
EGG BREAKERS / SEPARATORS
CAPACITY: 3000 eggs/hour
REPLACES: 5 people
COMPATIBILITY: Vel-30
POWER SUPPLY: 0.4 kW 230 V 1/N/PE 50/60 Hz, 0.75 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: from client’s installation
DIMENSIONS: 1400x664x1293 mm [56x27x51 in.]
MINIMAL WORKSPACE: 2400×1670 mm [95×66 in.]
WEIGHT: 85 kg [188 lbs]
OPERATED BY: 1 person
RX-0
The RX-0 Egg Breaker utilizes a gravity-roller feeder to smoothly transport eggs into the breaking section. Its impressive productivity is driven by an innovative rotary breaking mechanism designed for maximum efficiency.
Cracking the eggshells with specially shaped knives, the machine perfectly mimics the gentle precision of human hands. This ultra-hygienic egg-breaking method is an exclusive OVO-TECH innovation.
Key features of the processing cycle.
Quality Control & Separation: The broken eggs then flow through a specially designed compact controller for additional quality control. After flowing through the controller, the eggs go to the separator, where the yolks are separated from the whites.
Effortless Cleaning: After operation, the unit can be thoroughly and quickly washed using its integrated CIP (Clean-In-Place) system.
Built to meet strict global food safety standards, the entire machine is constructed from premium INOX EN 1.4301 (AISI 304) stainless steel, guaranteeing long-lasting durability.
Broken eggs go through a special buffer and quality controller, where damaged eggs are removed. Next, the eggs go through a separator, where egg whites are separated from yolks. This most hygienic egg breaking method is an innovation by OVO-TECH. After work completion, the machine can be cleaned with a built-in CIP system (a self-cleaning interior with a spray ball).
CAPACITY: 3000-6500 eggs/hour
REPLACES: 14 people
COMPATIBILITY: PS-1, MX-1, UX-1, Vel-30
POWER SUPPLY: 1 kW 230 V 1/N/PE 50/60 Hz, 1 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: from client’s installation
DIMENSIONS: 1950x1163x1480 mm [77x46x58 in.]
MINIMAL WORKSPACE: 2950×2165 mm [116×85 in.]
WEIGHT: 280 kg [617 lbs]
OPERATED BY: 1-2 person
RX-1
The RX-1 egg breaker is equipped with a belt conveyor and a gravity-roller feeder to smoothly transport eggs into the breaking section. The high productivity of the machine is achieved through the use of innovative rotary breaking mechanisms.
The machine breaks the eggshells using specially shaped knives, mimicking the work of human hands. This highly hygienic method of breaking eggs is an innovation by OVO-TECH. For a fully automated processing line, the machine can be seamlessly integrated with the Mx-1 Egg Washer and the Ux-1 UV Egg Sanitizer.
Processing and Quality Control.
The broken eggs then flow through a specially designed compact controller for additional quality control.
After flowing through the controller, the eggs go to the separator, where the yolks are separated from the whites.
The volume of shells from the broken eggs is reduced using a stand-alone UZS universal shell crusher. This ensures a 95% reduction in the volume of shells.
Hygiene and Durability:
After operation, the machine can be washed using its integrated CIP (Clean-In-Place) system. The entire unit is made of premium INOX EN 1.4301 (AISI 304) steel.
Compatibility:
The RX-1 egg breaker uses a belt, self-pacing feeder with a system of specially designed rollers to tranport the eggs into its breaking section. The machines high performance is achieved thanks to the use of the best-in-class, innovative breaking mechanisms. After work completion, the machine can be cleaned with a built-in CIP system (a self-cleaning interior with a spray ball).
EGG WASHING MACHINES
CAPACITY: 1000-3000 eggs/hour
REPLACES: 8 people
COMPATIBILITY: VEL-30
POWER SUPPLY: 3 kW 230 V 1/N/PE 50/60 Hz, 3.35 kW 110 V 1/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: hot water from client’s installation
DIMENSIONS: 1703x807x1224 mm [67x32x48 in.]
MINIMAL WORKSPACE: 2700×1800 mm [106×71 in.]
WEIGHT: 175 kg [386 lbs]
OPERATED BY: 1 person
MX-0
The MX-0 tunnel washes the eggs in a 3D fashion thanks to the use of specially designed rotating brushes which clean all of the eggs’ surfaces. This allows for an exceptional level of cleanliness. First, the eggs are fed into the machine There, thanks to the use of specially profiled rollers, the eggs are rotated along their axis, while specially designed brushes with warm wather(20-45) °C wash the eggs at every angle, which results in a 3D washing effect. After washing, the eggs are transported into a drying section, where they are dried by a stream of warm air.
Additional Informations
The washer does not have a rinsing tank or a washing tank. The washing section drains directly to the sewer system. Water consumption in this section is regulated by the customer with a ball valve. Water consumption is approximately 300 l/h, and the washing water temperature is regulated by a thermostatic mixing valve within a range of 20-45°C. The MX washer has adjustable egg washing capacity. Adjusting the machine’s capacity to the degree of soiling allows for optimal washing.
CAPACITY: 3000-6500 eggs/hour
REPLACES: 17 people
COMPATIBILITY: UX-1, VEL-30, RX-1, UDTJ-150
POWER SUPPLY: 14 kW 400 V 3/N/PE 50/60 Hz, 14 kW 230 V 3/N/PE 50/60 Hz
COMPRESSED AIR: n/d
WATER: from client’s installation
DIMENSIONS: 1883x878x1592 mm [75x35x63 in.]
MINIMAL WORKSPACE: 2880×1880 mm [114×75 in.]
WEIGHT: 270 kg [595 lbs]
OPERATED BY: 1 person
MX-1
MX-1 tunnel washes the eggs in a 3D fashion thanks to the use of specially designed rotating brushes which clean all of the eggs’ surfaces. This allows for an exceptional level of cleanliness. First, the eggs are fed into the machine with the use of an integrated belt feeder. There, thanks to the use of specially profiled rollers, the eggs are rotated along their axis, while specially designed brushes wash the eggs at every angle, which results in a 3D washing effect. After washing, the eggs are transported into a drying section, where they are dried by a stream of warm air. The washer operates in a closed water circuit, which allows for its optimal use and reduces costs.
ACCESSORIES
CAPACITY: 30 eggs at a time
REPLACES: n/a
COMPATIBILITY: RX-0/1/2/4/6, MX-1/2/4/6, UX-1/2/4/6
POWER SUPPLY: 0.37 kW 230 V 1/N/PE 50/60 Hz, 0.45 kW 230 V 2/PE 50/60 Hz, 1 kW 110 V 1/N/PE 50/60 Hz + VFD
COMPRESSED AIR: n/a
WATER: n/a
DIMENSIONS: 476x325x354 mm [18x13x14 in.]
MINIMAL WORKSPACE: 800×1200 mm [32×47 in.]
WEIGHT: 25 kg [55 lbs]
OPERATED BY: 1 person
VEL-30
The lifter, with the use of rubber suction cups and accumulated vacuum, grabs the eggs which allows for their transportation. It allows to move eggs from the egg cartons to the machine.
Vacuum pump included. All parts of our machines which come in contact with eggs are made out of stainless steel EN 1.4301 (AISI 304).
CAPACITY: dozen matles at a time
REPLACES: n/a
COMPATIBILITY:
POWER SUPPLY: 0.37 kW 230 V 1/N/PE 50/60 Hz, 0.45 kW 230 V 2/PE 50/60 Hz, 1 kW 110 V 1/N/PE 50/60 Hz + VFD
COMPRESSED AIR: n/a
WATER: n/a
DIMENSIONS: 654x588x844 mm
MINIMAL WORKSPACE: 1800×1600 mm
WEIGHT:
OPERATED BY: 1 person
Table for VEL-30
Helps to use Vel-30 egg lifter to move eggs from cartons to machine, dozen matles at a time. The table is used to work with the Vel-30 manual feeder, it provides its mounting and enables the handy use of several dozen matles.
All parts of our machines which come in contact with eggs are made out of stainless steel EN 1.4301 (AISI 304).
PROTECTIVE OIL COATING MACHINE ON EGGS
CAPACITY: 6500 eggs/hour
REPLACES: n/a
COMPATIBILITY: MX-1, UX-1
POWER SUPPLY: 3.5 kW 400 V 3/N/PE 50/60 Hz, 3.5 kW 230 V 3/N/PE 50/60 Hz
COMPRESSED AIR: n/a
WATER: n/a
DIMENSIONS: 4082x1381x1327 mm [161x55x52 in.]
MINIMAL WORKSPACE: 5100×2400 mm [201×95 in.]
WEIGHT: 600 kg [1330 lbs]
OPERATED BY: 1 person
OS-1
The OS-1 applies a protective oil barrier that effectively slows weight loss, limits gas exchange, and prevents contamination – preserving egg freshness and quality from lay to consumption. This technology represents a strategic investment in a more sustainable and efficient food supply chain, delivering tangible benefits for producers, retailers, and consumers. Designed for egg grading and packing facilities, poultry farms, and any operation where eggs are handled for resale without further processing, the OS-1 provides reliable protection against spoilage – eliminating the need for cold storage.
This machine is designed for egg sorting and packing plants, hen houses, i.e. wherever eggs are resold without further processing, protecting them from spoilage without the need for cold storage.
